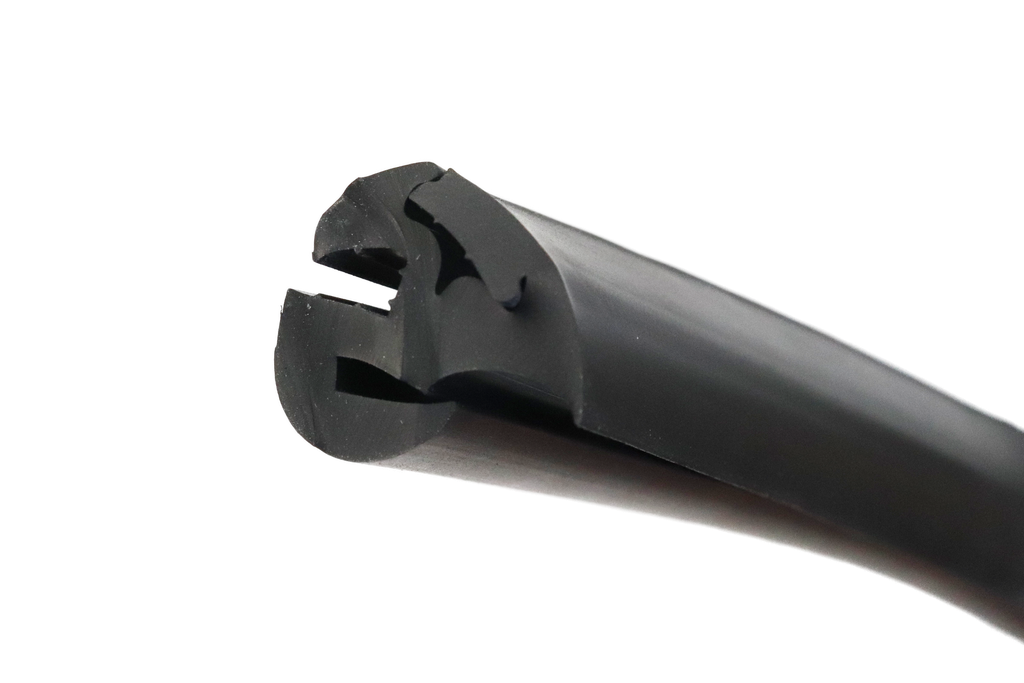

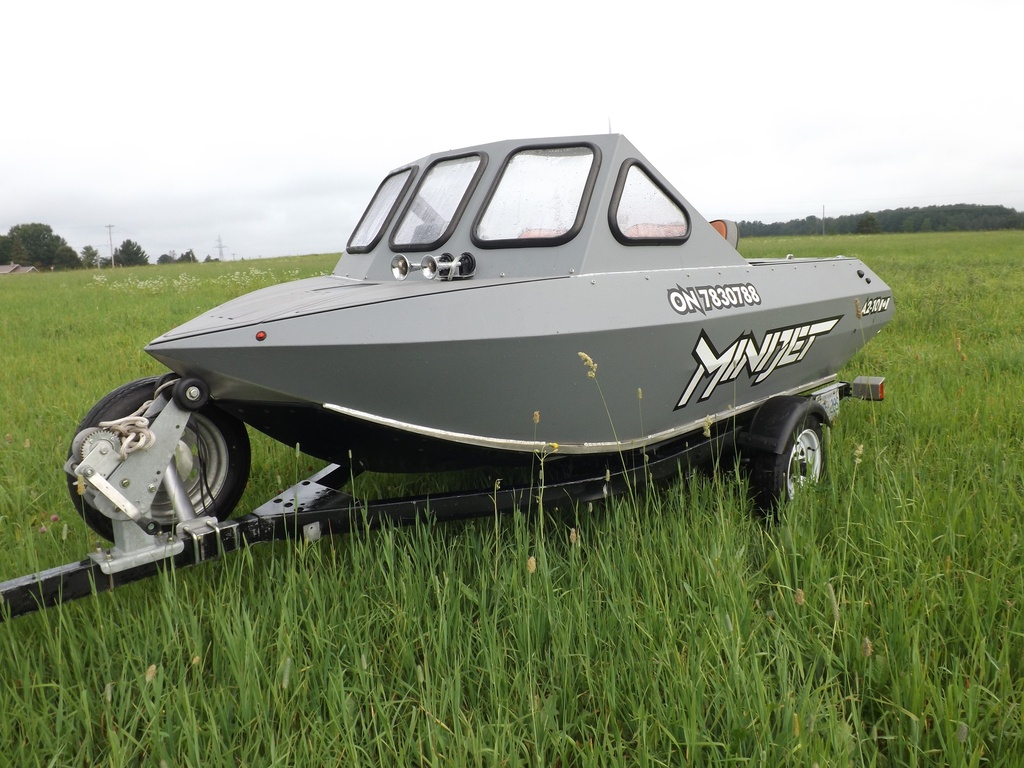

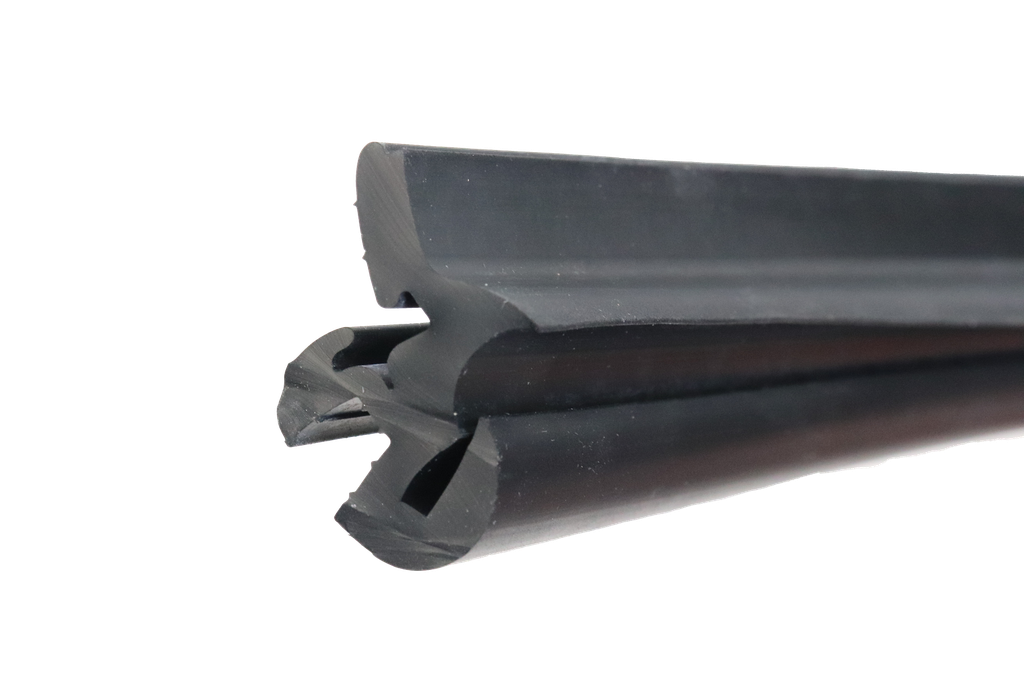

Windscreen gasket material ideal for windows on Minijet high-profile windscreen assemblies.

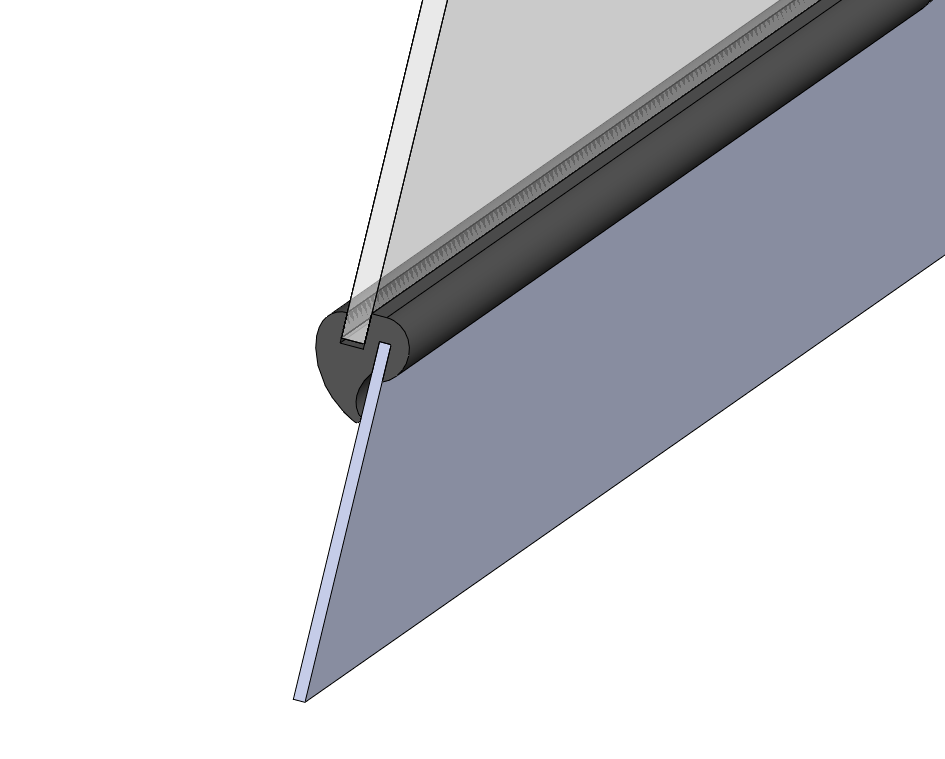

This rubber gasket material is designed to work with 1/8 inch thickness aluminum panels, and 1/4 inch thickness Lexan or glass window inserts. This gasket material allows the lexan or glass insert to sit outside of the aluminum panel so that it can not be pushed inwards by water, waves, or impacts. Lexan or glass inserts must be cut larger than the mating hole in order to make this gasket work correctly. After installation, the outer lip of this gasket can be folded inward on itself, locking the window inserts into position.
- Minimum recommended distance between edge of glass and edge of body panel = 0.140 inch (glass piece should be 2 x 0.140 inch = 0.280 inch larger than the body panel opening).
- Minimum recommended radius of body panel opening = 2.00 inch
- Suitable for body panel thicknesses from 0.075 inch to 0.140 inch
- Suitable for glass panel thicknesses from 0.1875 inch to 0.250 inch
Package Contains:
Selected length quantity of gasket material
Please Note:
Gasket material is sold in continuous length 1 foot increments. Please use the quantity selector to indicate the length you require in feet.
